High-Repetition-Rate Credo Ti:Sa Lasers

The compact solid-state high repetition rate Credo Titanium:Sapphire-Laser is designed for applications where a wide tuning range and high pulse intensity with narrow linewidth is needed. Typical applications are atmospheric research, combustion research, material science, semiconductor technology, and environmental analysis.

CREDO Ti:Sa

Littrow design based tunable nanosecond Ti:Sapphire laser for repetition rates in the range of 1-3 kHz

  • tuning range: 690-1010 nm
  • pulse duration (FWHM): approx. 30ns
  • repetition rate: 1…3 kHz
  • output power 2.5W  at peak wavelength

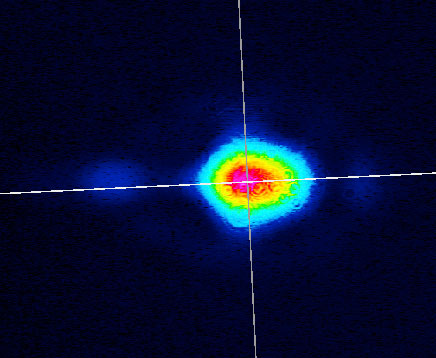

  • beam size: 1 mm (typical)
  • linewidth: < 0.2 cm^-1

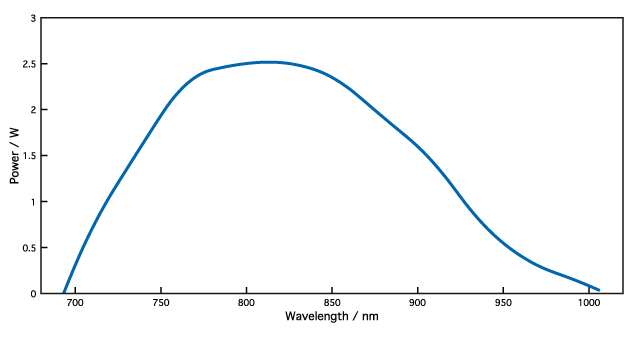

Credo Ti:Sa - Energy Output

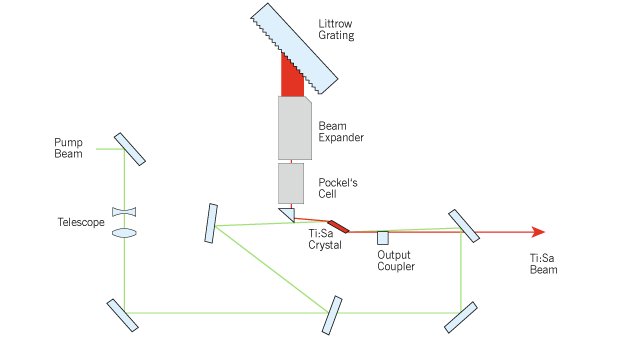

Credo Ti:Sa - Optical Layout

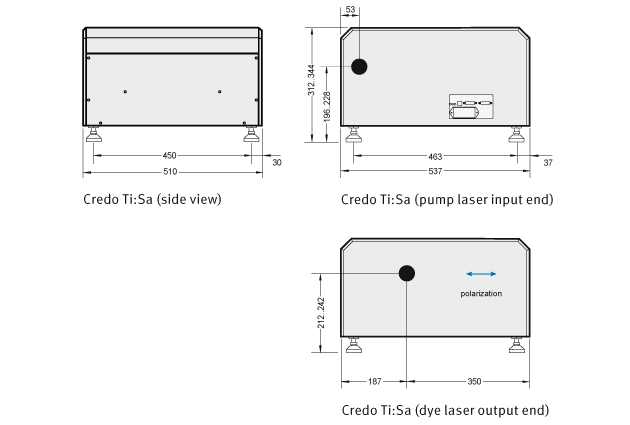

Credo Ti:Sa - Dimensions

All Dimensions in mm. Specifications are subject to change without notice.

Literature & Downloads

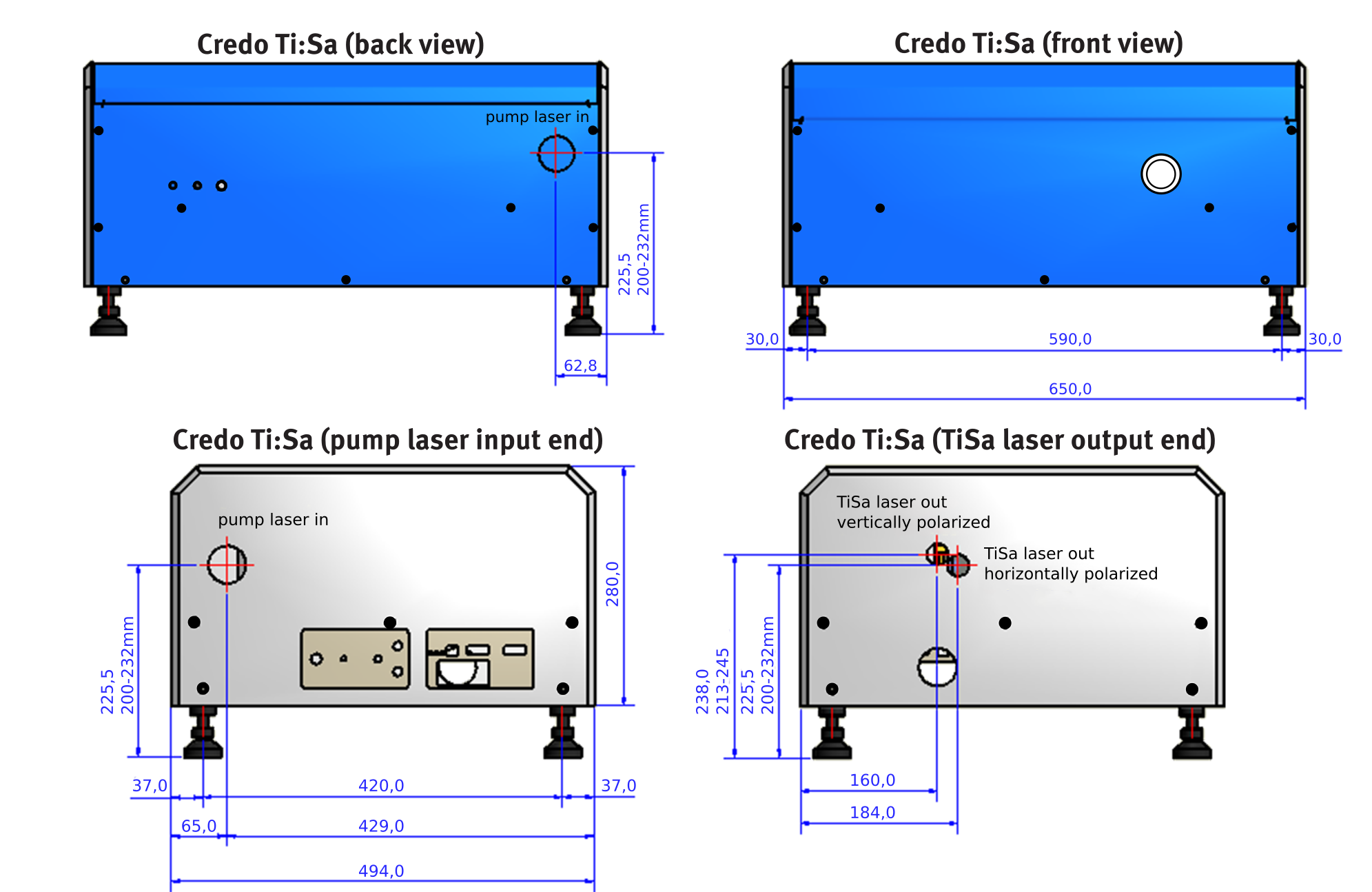

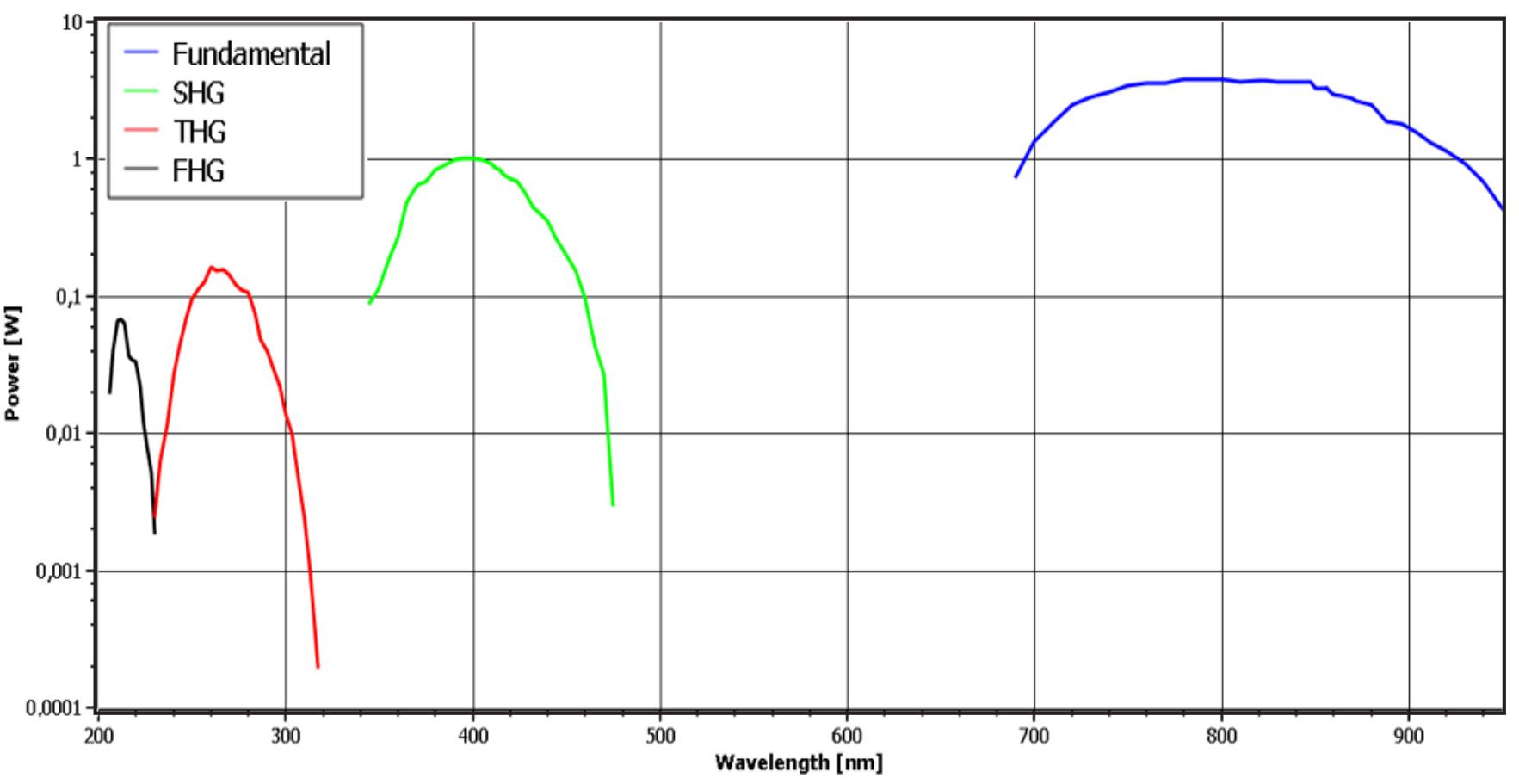

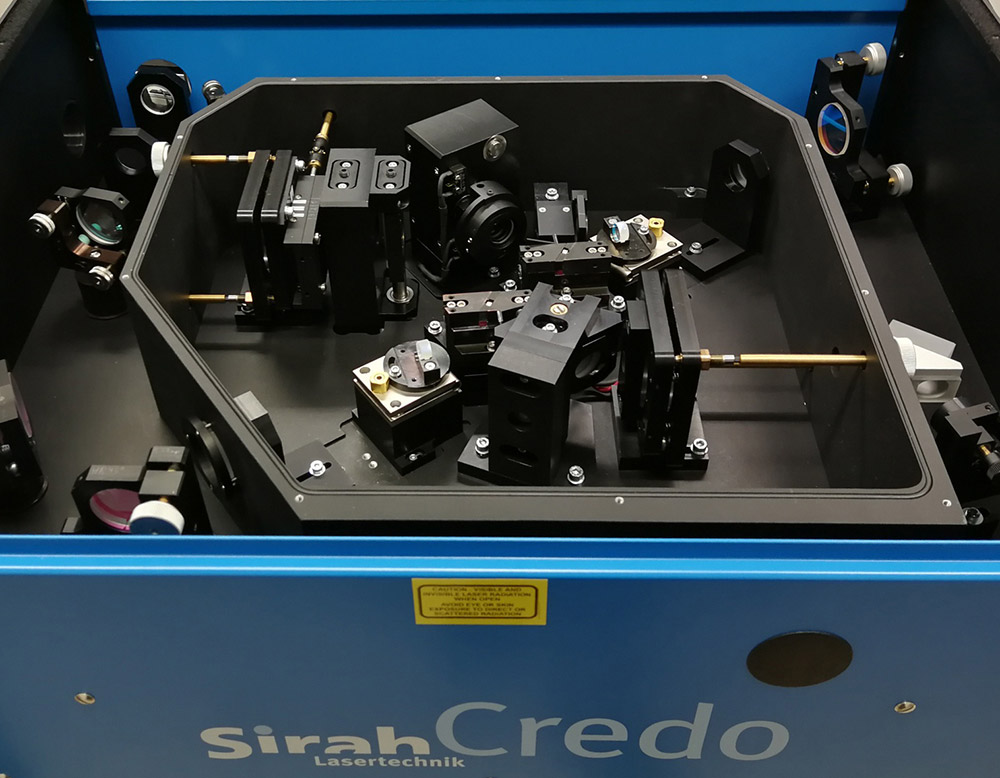

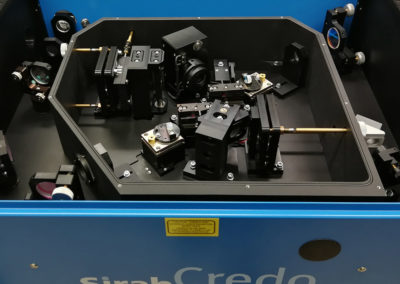

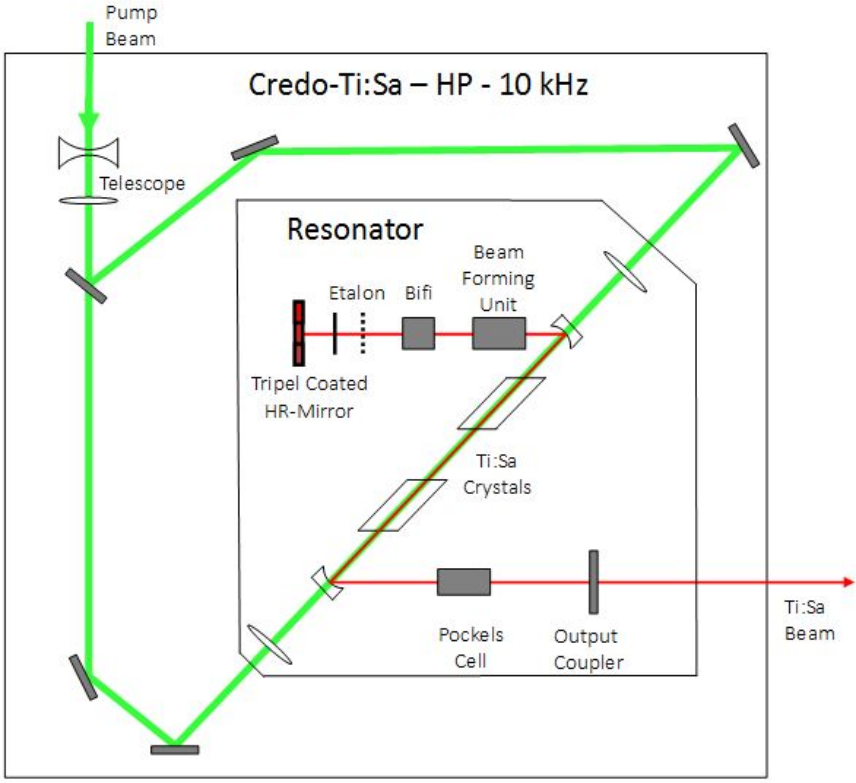

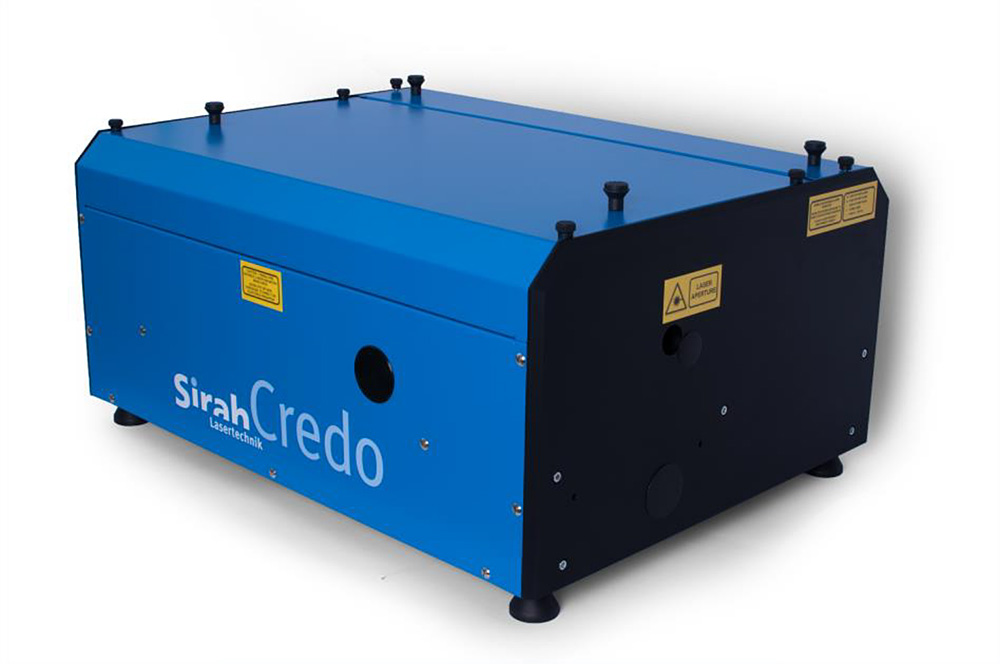

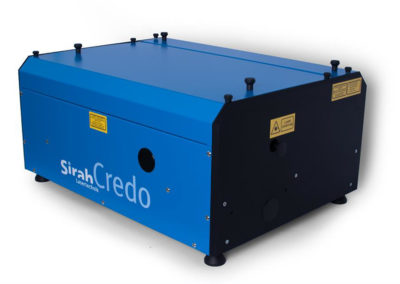

CREDO Ti:Sa 10 kHz

Birefringent / Etalon tuned nanosecond Ti:Sapphire laser for high repetition rates of 10 kHz

  • tuning range: 690-950 nm
  • pulse duration (FWHM): approx. 28-50 ns
  • repetition rate: 3…10 kHz
  • output power 6.8W at 10 kHz at peak wavelength

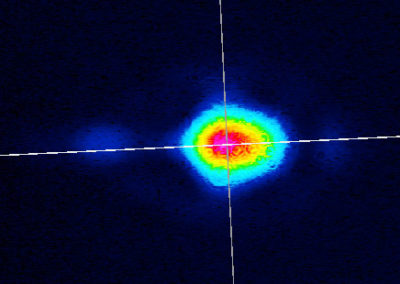

  • beam size: 1 mm (typical)
  • linewidth: < 6 GHz (with etalon)
  • beam divergence: < 1.5 brad
