CREDO-DYE-N
The Credo Dye laser is a unique narrow bandwidth tunable laser designed for high repetition rate excitation. It features an ultra-low-threshold oscillator for high conversion efficiency at low pulse energies.

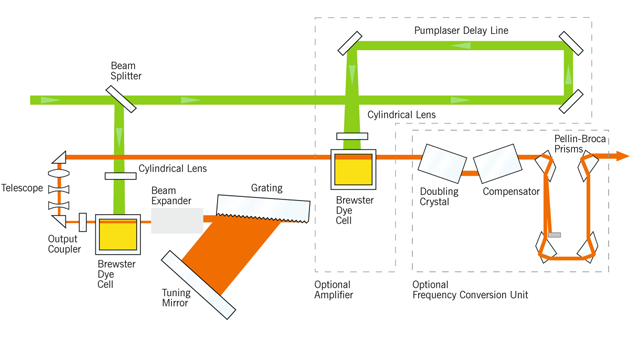

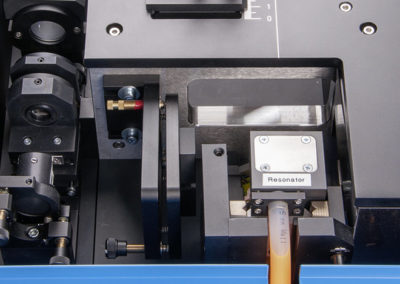

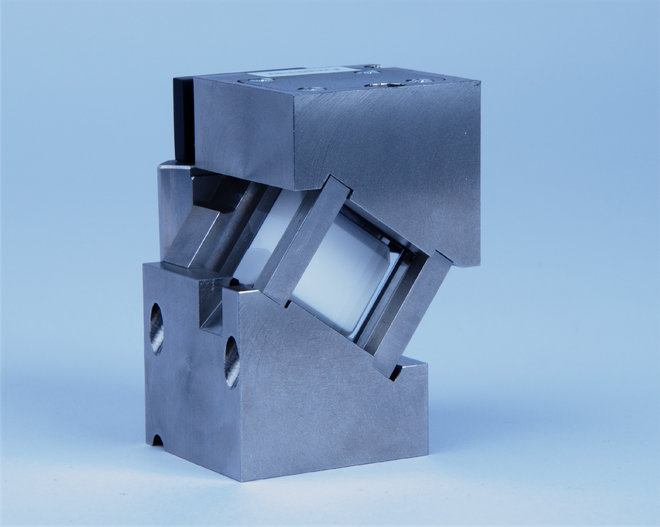

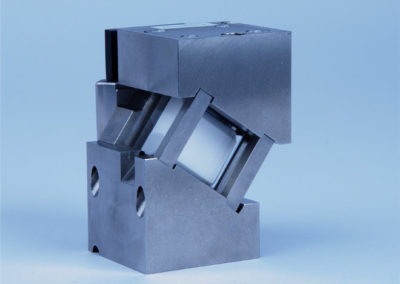

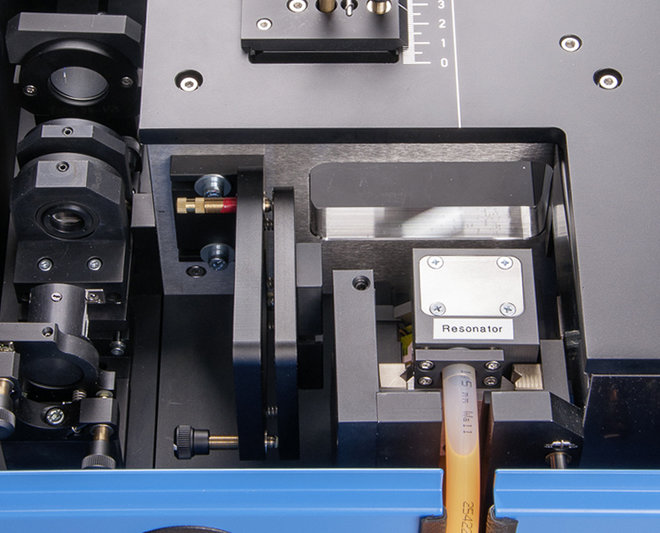

Special dye cells combine rapid flow of the dye solution with high pump power capabilities. Repetition rates up to 150 kHz are possible. Average pump powers of up to 200 W can be used.
Special dye cells combine rapid flow of the dye solution with high pump power capabilities. Repetition rates up to 150 kHz are possible. Average pump powers of up to 200 W can be used.

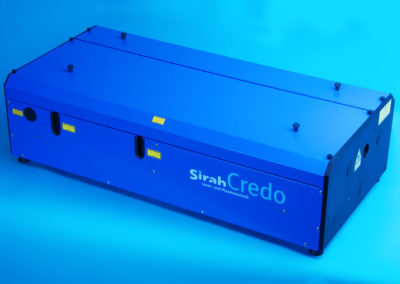

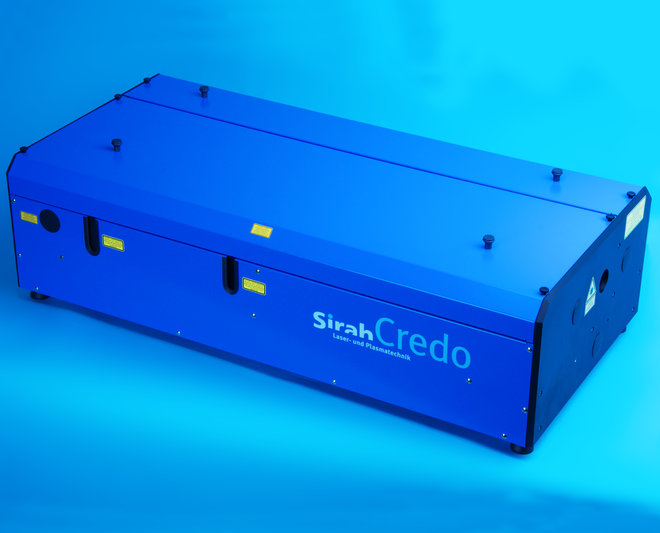

Credo Dye

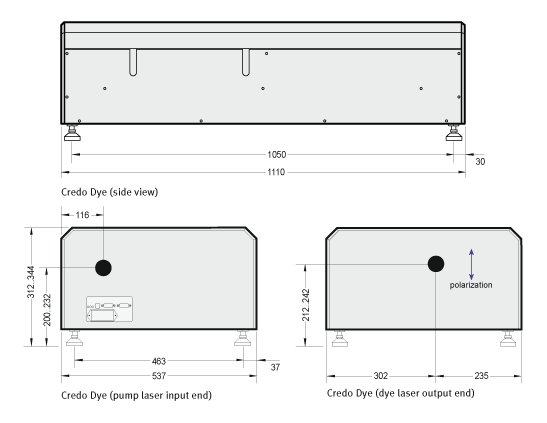

All Dimensions in mm. Specifications are subject to change without notice.
Wavelength and Beam Characteristics
Linewidth Specifications
| Absolute Wavelength Accuracy | < 15 pm (prism models: 0.5 nm) |
| Wavelength Resetability | < 2 pm (prism models: 0.05 nm) |
| Wavelength Stability | < 1.5 pm / °C (prism models: 10 pm / °C) |
| Divergence (typical) | 1.0 mrad (0.5 mrad with amplifier) |
| Beam Size (typical) | 0.8 mm (horizontal) x 2 mm (vertical) |
| Polarization | > 98 % (vertical) |
| ASE | < 0.5 % |
| Pump Energies | (resonator only) < 25 mJ / 4 .. 35 ns / max. 20 W average power (with amplifier) < 50 mJ / 4 .. 35 ns / max. 200 W average power |
| Dispersion Option | Tuning Range | Linewidth |
|---|---|---|
| Three Quartz Prisms | 380..920 nm | 5 cm-1 @ 570 nm |
| 1800 lines / mm, 90 mm | 430..920 nm | 0.07 cm-1 @ 625 nm |
| 2400 lines / mm, 90 mm | 430..760 nm | 0.06 cm-1 @ 570 nm |
| 3000 lines / mm, 90 mm | 370..620 nm | 0.06 cm-1 @ 530 nm |
Power Output
| Dye | Pump Power, 532 nm, 10 kHz | ||
|---|---|---|---|
| 8 W | 40 W | 150 W | |
| Rhodamine 6G (570 nm) | 1.2 W (14.5 %) | 12 W (30.0 %) | 50 W (30.0 %) |
| DCM (630 nm) | 0.7 W ( 8.5 %) | 10 W (25.0 %) | 37.5 W (21.0 %) |
| Styryl 8 (745 nm) | 0.1 W ( 1.3 %) | 4 W (10.0 %) | 18.8 W (12.5 %) |
| Dye | Pump Power, 355 nm, 10 kHz | ||
|---|---|---|---|
| 3 W | 40 W | 70 W | |
| Coumarin 307 (500 nm) | 0.18 W (6.0 %) | 5.6 W (14.0 %) | 10.5 W (15.0 %) |
| Coumarin 2 (450 nm) | 0.18 W (6.0 %) | 5.6 W (14.0 %) | 10.5 W (15.0 %) |
| Exalite 389/398 (393 nm) | 0.18 W (6.0 %) | 5.6 W (14.0 %) | 10.5 W (15.0 %) |
Requirements
| Cooling for dye solvent | 300 Watt, resonator only 600 Watt, resonator & amplifier system |
| Laboratory | dust-free air (flow box) |
| Voltage | 110..230 V, single phase, 50 Hz / 60 Hz |
| Computer Control | XP / Vista / Windows 7 / Windows 8 / Windows 10 (32 & 64 bit), USB port |
Options
| Amplifier for high energy systems |  |
| Internal open loop frequency doubling | |
| Automatic exchange of gratings | |
| Double bandwidth option | |
